RichEdit Interface Reference

RichEdit control is a control in which the user can enter and edit text. More...

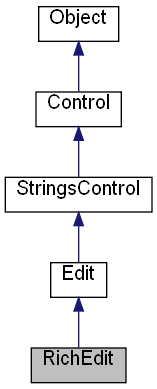

Inheritance diagram for RichEdit:

Collaboration diagram for RichEdit:

List of all members.

Public Member Functions
	FindText ([in] BSTR Text,[in, defaultvalue(FR_DOWN)] ULONG Flags,[in, defaultvalue(0)] LONG MinPos,[in, defaultvalue(-1)] LONG MaxPos,[out, retval] LONG *pResult)
	The method finds a text within a rich edit control.
	Load ([in] VARIANT Stream,[in, defaultvalue(SF_RTF)] ULONG Flags,[out, retval] VARIANT_BOOL *pResult)
	Loads a text from a stream.
	Save ([in] VARIANT Stream,[in, defaultvalue(SF_RTF)] ULONG Flags,[out, retval] VARIANT_BOOL *pResult)
	Saves a text to the stream.
	Redo (void)
	Redo the next action in the control's redo queue.
	Print ([in] BSTR Driver,[in] BSTR Device,[in] IDispatch *PrintInfo,[in, defaultvalue(FALSE)] VARIANT_BOOL Selection)
	Prints a text on a printer.
Properties
IDispatch *RW	SelFont []
	Specifies the Font for a selection.
IDispatch *R	Paragraph []
	Specifies the Paragraph object that can be used for changing a paragraph options.
VARIANT_BOOL RW	AutoURLDetect []
	Specifies automatic URL detection.
VARIANT_BOOL R	CanRedo []
	Determines whether there are any actions in the control redo queue.
ULONG RW	UndoLimit []
	Specifies the undo limit for the control.
VARIANT W	OnSelChange []
	Sets the event handler for the OnSelChange event.
ULONG RW	PageRotate []
	Specifies text rotation.
ULONG R	UndoName []
	Returns the type of the next undo action.
BSTR R	UndoNameString []
	Returns the type of the next undo action as a string.

---

Detailed Description

RichEdit control is a control in which the user can enter and edit text.

RichEdit control supports additional text and paragraph formatting options.

When the user changes a text, the OnChange event occur.

See also the CreateRichEdit method of the Frame.

Example (JScript):

o = new ActiveXObject("Scripting.WindowSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 300
f.ClientHeight = 200
f.CenterControl()

r = f.CreateRichEdit(10,10,400,100)
r.Align = o.Translate("AL_CLIENT")

r.Font.Size = 14

r.Add("Line 1")

r.SelFont.Color = 0x00FF0000

r.Add("Line 3")

r.SelFont.Bold = true
r.SelFont.Color = 0x000000FF
r.SelFont.Size = 16

r.Add("Line 2")

f.Show()

o.Run()

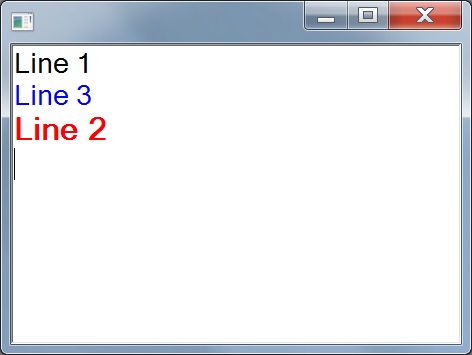

Result:

---

Member Function Documentation

FindText	(	[in] BSTR	Text,
		[in, defaultvalue(FR_DOWN)] ULONG	Flags,
		[in, defaultvalue(0)] LONG	MinPos,
		[in, defaultvalue(-1)] LONG	MaxPos,
		[out, retval] LONG *	pResult
	)

The method finds a text within a rich edit control.

Parameters:

	Text	text.
	Flags	This parameter can be a combination of the following values: FR_DOWN If set, the search is from the end of the current selection to the end of the document, otherwise, the search is from the end of the current selection to the beginning of the document. FR_WHOLEWORD If set, the method searches only for whole words that match the search text. FR_MATCHCASE If set, the search operation is case-sensitive, otherwise, the search operation is case-insensitive.
	MinPos	Specifies the starting point of the search.
	MaxPos	Specifies the ending point of the search (-1 - search to the end of the text).

Return values:

pResult

Zero-based position of the first character of the match, -1 if the text not found.

Load	(	[in] VARIANT	Stream,
		[in, defaultvalue(SF_RTF)] ULONG	Flags,
		[out, retval] VARIANT_BOOL *	pResult
	)

Loads a text from a stream.

Parameters:

	Stream	The Stream, may be a TextStream object, created by the OpenTextFile method of the FileSystemObject object (See Microsoft Platform SDK).
	Flags	This parameter can be one of the following values:

• SF_RTF Rich Text Format (RTF).
• SF_TEXT Simple text.

Additional flags may be specified:

• SFF_PLAINRTF If specified, only keywords common to all languages are loaded in. Language-specific RTF keywords in the stream are ignored.
• SFF_SELECTION If specified, the data stream replaces the contents of the current selection. If not specified, the data stream replaces the entire contents of the control.
• SF_UNICODE Indicates Unicode text (Only for Rich Edit 2.0 and later)

Return values:

pResult

TRUE undicates that the load operation successful.

Print	(	[in] BSTR	Driver,
		[in] BSTR	Device,
		[in] IDispatch *	PrintInfo,
		[in, defaultvalue(FALSE)] VARIANT_BOOL	Selection
	)

Prints a text on a printer.

Parameters:

	Driver	Printer driver.
	Device	Printer.
	PrintInfo	PrintInfo object.
	Selection	- "TRUE" - prints only current selection. "FALSE" - prints all text.

Since:

1.1.6.

Redo

(

void

)

Redo the next action in the control's redo queue.

Save	(	[in] VARIANT	Stream,
		[in, defaultvalue(SF_RTF)] ULONG	Flags,
		[out, retval] VARIANT_BOOL *	pResult
	)

Saves a text to the stream.

Parameters:

	Stream	The Stream, may be a TextStream object, created by the OpenTextFile method of the FileSystemObject object (See Microsoft Platform SDK).
	Flags	This parameter can be one of the following values: SF_RTF Rich Text Format (RTF) SF_RTFNOOBJS Rich Text Format (RTF) without COM objects. SF_TEXT Simple text. SF_TEXTIZED Text with a text representation of COM objects.

Additional flags may be specified:

• SFF_PLAINRTF If specified, only keywords common to all languages are loaded in. Language-specific RTF keywords in the stream are ignored.
• SFF_SELECTION If specified, the method saves only the contents of the current selection, otherwise, saves the entire contents.
• SF_UNICODE òåêñò ndicates Unicode text (Only for Rich Edit 2.0 and later)

Return values:

pResult

TRUE undicates that the save operation successful.

---

Property Documentation

VARIANT_BOOL RW AutoURLDetect

Specifies automatic URL detection.

Default value: FALSE.

VARIANT_BOOL R CanRedo

Determines whether there are any actions in the control redo queue.

If the redo queue is not empty, you can use the Redo method.

VARIANT W OnSelChange

Sets the event handler for the OnSelChange event.

ULONG RW PageRotate

Specifies text rotation.

This parameter can be one of the following values:

• EPR_0
• EPR_90
• EPR_180
• EPR_270

Requires Windows XP SP1. Requires RichEdit version 5 (See CreateRichEdit).

Since:

1.1.8.

IDispatch* R Paragraph

Specifies the Paragraph object that can be used for changing a paragraph options.

IDispatch* RW SelFont

Specifies the Font for a selection.

Default font specified by the Font property of the Control.

Note:

When the current selection changes the SelFont is updated.

ULONG RW UndoLimit

Specifies the undo limit for the control.

Default value: 100.

ULONG R UndoName

Returns the type of the next undo action.

This parameter can be one of the following values:

• UID_UNKNOWN Unknown.
• UID_TYPING Typing.
• UID_DELETE Delet.
• UID_DRAGDROP Drag&Drop.
• UID_CUT Cut.
• UID_PASTE Paste.

BSTR R UndoNameString

Returns the type of the next undo action as a string.

See also:

UndoName

Since:

1.1.8.

---
