ListViewGroups Interface Reference

Defines Groups for ListView. More...

List of all members.

Public Member Functions
	Remove ([in] VARIANT Index)
	Call this method to remove one item from the collection.
	Clear ()
	Removes all of the items from the collection.
	Add ([in] BSTR Name,[out, retval] IDispatch **Item)
	Call this method to create a new item in the collection.
Properties
LPUNKNOWN R	_NewEnum []
	Returns the enumerator for the collection.
VARIANT R	Item [[in] long Index] []
	Returns the specified item in the collection.
long R	Count []
	Returns the number of items in the collection.

---

Detailed Description

Defines Groups for ListView.

The method Groups returns a ListViewGroups object. An ListViewGroups object is a collection of the ListViewGroup objects. Requires Comctl32.dll version 6. Requires visual styles (Themes). Without visual styles groups not visible. Example:

o = new ActiveXObject("Scripting.WindowSystemObject")
o.EnableVisualStyles = true

fs = new ActiveXObject("Scripting.FileSystemObject")

f = o.CreateForm(0,0,0,0)

f.ClientWidth = 550
f.ClientHeight = 650
f.CenterControl()

Box = f.CreateListView(10,10,250,300)
Box.HotTrack = true
Box.Align = o.Translate("AL_CLIENT")

Ext = new ActiveXObject("Scripting.WindowSystemObjectExtensions")
Box.LargeImages = Ext.SystemImageListLarge
Box.SmallImages = Ext.SystemImageListSmall
Box.Style = o.Translate("LV_VIEW_ICON")

var Data = ["1.txt","1.jpg","1.png","1.exe","1.bat","1.com","1.js","1.vbs","1.bmp","1.ini","1.xml"]

Group1 = Box.Groups.Add("Group 1")
Group2 = Box.Groups.Add("Group 2")

Group1.SubTitle = "The group 1 description where"
Group1.Task = "Task"
Group1.DescriptionTop = "DescriptionTop"
Group1.DescriptionBottom = "DescriptionBottom"
Group1.SubsetTitle = "SubsetTitle"
Group1.HeaderAlign = o.Translate("AL_CENTER")
Group1.FooterAlign = o.Translate("AL_CENTER")
Group1.Collapsible = true
Group1.Footer = "Group 1 Footer Text"
Group2.Footer = "Group 2 Footer Text"

for (i = 0; i<Data.length; i++)
{
        Item = Box.Add("Item "+i+": "+Data[i])
        Item.ImageIndex = Ext.GetFileSysIconIndexLarge(Data[i],o.Translate("FILE_ATTRIBUTE_ARCHIVE"))
        Item.SubItems(0) = "The first line for "+i
        Item.SubItems(1) = "The second line for (a b c d e f g h j k)"+i
        Item.Group = i % 2
}

Box.OnGroupLinkClick = OnGroupLinkClick

function OnGroupLinkClick(Sender,Group){
        f.MessageBox(Group.Header + " clicked")
}


f.Show()

o.Run()

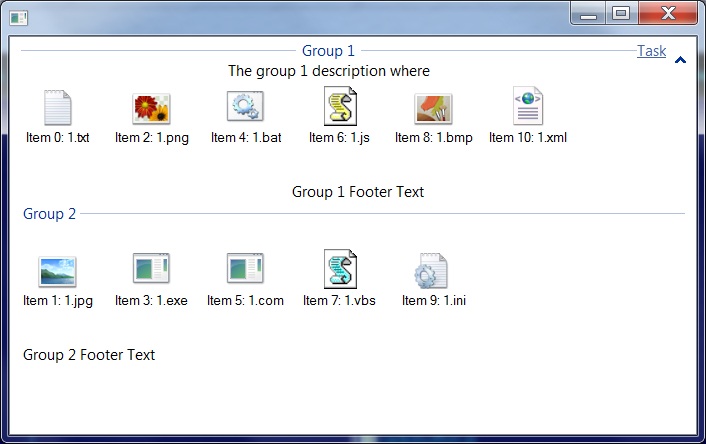

Result:

More function example you can see in Demo\JScript\Small\ListView\ListViewGroups.js.

Since:

1.1.10.

---

Member Function Documentation

Add	(	[in] BSTR	Name,
		[out, retval] IDispatch **	Item
	)

Call this method to create a new item in the collection.

Parameters:

Name

the header text for a new group.

Return values:

Item

A new ListViewGroup object.

Since:

1.1.10.

Clear

(

)

Removes all of the items from the collection.

Since:

1.1.10.

Remove

(

[in] VARIANT

Index

)

Call this method to remove one item from the collection.

Parameters:

Index

The index of the element to remove or the element itself.

Since:

1.1.10.

---

Property Documentation

LPUNKNOWN R _NewEnum

Returns the enumerator for the collection.

Since:

1.1.10.

long R Count

Returns the number of items in the collection.

Since:

1.1.10.

VARIANT R Item[[in] long Index]

(

)

Returns the specified item in the collection.

Since:

1.1.10.

---
