CheckBox Interface Reference

The CheckBox control allows the user to check it. More...

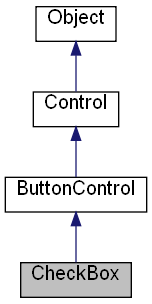

Inheritance diagram for CheckBox:

Collaboration diagram for CheckBox:

List of all members.

Properties
LONG RW	State []
	This parameter can be a one of the following values:.
VARIANT_BOOL RW	AllowGrayed []
	The AllowGrayed property is a Boolean value that indicates that the CheckBox can be grayed.
VARIANT_BOOL RW	Checked []
	The Checked property is a Boolean value that indicates that the CheckBox is checked or not.

---

Detailed Description

The CheckBox control allows the user to check it.

When the user checks the control, the OnChange event occur.

Example:

o = new ActiveXObject("Scripting.WindowSystemObject")

o.EnableVisualStyles = true

f = o.CreateForm(0,0,0,0)

f.Text = "WSO"
f.ClientWidth = 200
f.ClientHeight = 100
f.CenterControl()

f.CreateCheckBox(10,10,100,25,"Check 1")
f.CreateCheckBox(10,40,100,25,"Check 2").Checked = true
f.CreateCheckBox(10,70,100,25,"Check 3")

f.Show()

o.Run()


function CloseForm(Sender)
{
        f.Close()
}

Result:

---

Property Documentation

VARIANT_BOOL RW AllowGrayed

The AllowGrayed property is a Boolean value that indicates that the CheckBox can be grayed.

VARIANT_BOOL RW Checked

The Checked property is a Boolean value that indicates that the CheckBox is checked or not.

LONG RW State

This parameter can be a one of the following values:.

• BST_UNCHECKED The CheckBox is checked.
• BST_CHECKED The CheckBox is checked.
• BST_INDETERMINATE The CheckBox is grayed.

---
